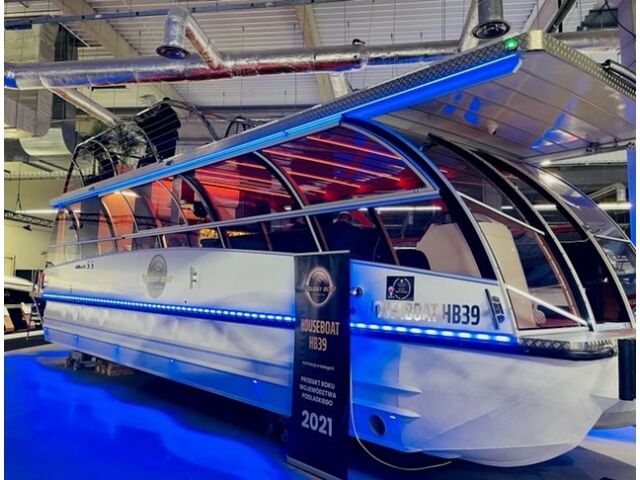

Electric Houseboat HB 39 Premium Line / Sauna Edition

Unsinkable catamaran with an electric drive, charged by solar panels, shore power in the harbor or a diesel generator, installed in the ship.

In sunny weather using the energy of the solar panels, installed on the roof.

You can sail for 2 hours a day independently, on the power of the solar panels.

A visit to the harbor is limited to filling the fresh water tanks and emptying the waste water tanks. Refilling clean water in the harbor is only for the kitchen.

For water for the toilet, bathroom, surface water is used which is filtered in 6 stages by a system.

On cold, cloudy days you can still successfully sail the catamaran by using a Diesel generator.

For heating You can use a Webasto heater or air conditioning in heating mode for comfortable Sailing....

With the sauna, you can also experience special moments on this luxury vessel.

This catamaran is equipped with a modern intelligent ship management system that can be controlled with a multimedia tablet, or phone from anywhere in the world via a fully encrypted internet connection.

You can also receive image and sound connection on your phone from the 8 IP cameras installed on the ship.

There you can set notifications in case of: motion detected in your defined zones.

General specification:

- catamaran with dimensions of 12 x 3,5 x 3,4 m (L x W x H)

- weight approx. 12,3 tons

- Rooms: living room with steering position and kitchenette, bedroom, toilet,

sauna with shower, dressing room, technical room

- 2 aluminum unsinkable floats

- aluminum construction

- sun deck

- electric movable swimming platform

- extendable foredeck for entry and exit

- stainless steel railings for stairs and sun deck

- electric propulsion with diesel generator

- bow thruster

- solar panels

- shore power

- fuel tanks 400 + 100 l

- 200 l holding tank

- fresh water tank 200 l

- 6-stage surface water filter system

Houseboat HB 39 electric with sauna

General specification:
- catamaran with dimensions of 12 x 3.5 x 3.4 m (L x W x H)
- weight about 9 tons
- Rooms: living room with wheelhouse and kitchenette, bedroom, toilet,
sauna with shower, dressing room, technical room
- 2 aluminum floats
- aluminum structure
- sun deck
- electric lowered swimming deck
- retractable foredeck for overflow
- stainless steel balustrades for stairs and sun deck
- electric propulsion with diesel generator
- bow thruster
- solar charging
- port loading
- fuel tanks 400 + 100 l
- 200 l faeces tank
- fresh water tank 100 l
- 6-stage outboard water filter system Steering position
- cockpit
- captain's seat
- wheel
- indicators
- switches
- supervise
- engine clocks
- engine control hydraulic controls
- engine levers
- sound signal button
- dual USB charging connector QC3.0
Salon:
- lounge sofas
- a coffee table
- white LED lighting (warm color)
- RGB LED lighting
- 230 V power outlet
- double USB charging sockets QC3.0
Kitchenette:
- fridge
- induction stove
- Microwave oven
- sink
- fresh water tap
- Faucet filtered untreated water
- standing kitchen cabinets
- hanging kitchen cabinets
- Illuminated Bar
- white LED lighting (warm color)
- RGB LED lighting
- 230 V sockets
- double USB charging socket QC3.0

Bedroom:
- one double bed on a raised shelf
- closet
- white LED lighting (warm color)
- RGB LED lighting
- 230 V socket
- double USB charging socket QC3.0
WC:
- mirrors on the walls
- granite stone countertop
- faucet
- bidet handle
- cupboard
- electric toilet with macerator
- white led lighting (cold color)
Sauna:
- faucet with shower
- shower tray
- dry sauna slove
- a bench for 4 persons
- white LED lighting (warm color)
Sun deck:
- stairs
- stainless steel banister
- Stainless steel balustrade of the sundeck
- RGB LED lighting of sun deck
- 230 V socket
- additional external loudspeaker
- solar panels
Domestic installations
Clean water installation:
- 100 l water tank
- double pump system
- Fresh water shore connection
- fresh water tap in kitchen
Outboard water system:
- 6-stage outboard water filter system
- double pump system
- electric boiler
Fecal installation:
- waste water tank 200 l
- pump with macerator
Fuel installation:
- fuel tank 400 l
- fuel pump
- fuel filters
- additional fuel tank 100l
Electrical installations:
- domestic 12 V power supply installation
- 12 V lighting installation
- installation of a 60 V electric motor
- music system with amplifier and 8 speakers
- surveillance of 8 IP cameras with internet access
- installation of 230 V sockets with a 12/230 V inverter
- diesel generator
- shore connection with a 20 m cable
- solar charging installation
Lighting:
- positional
- LED halogen
- RGB LED: ceiling living room + kitchenette, bedroom, hallway,
outside under the roof, sun deck
- External blue LED along the sides
- white LED under the steps of the stairs
Construction of the catamaran:
- aluminum modular unsinkable floats connected by the deck structure
utility and technical deck
- outer and inner walls of curved and straight aluminum profiles
- aluminum superstructure of the stairs with a stainless steel handrail
- roof/sun deck construction made of aluminum profiles and grooved plate
- sun deck stainless steel railing
Deck construction:
- HPL teak board
- 12 mm waterproof board
- aluminium profiles sun deck
- aluminium profiles technical deck
- 4 mm aluminium plate
Construction of exterior walls:
- composite plate (0.5 mm aluminum - 3 mm LDPE core - 0.5 mm aluminum)
- Aluminium structure made of bent profiles
- HPL teak plate
- 10 mm PMMA glazing

Construction of interior walls:
- structure made of aluminum profiles
- 5cm mineral wool filling
- HPL teak board on both sides
Construction of sun deck:
- 3mm grooved aluminum plate
- aluminum profiles
- 10 cm mineral wool
- Pecolit laminate board
Frames for windows and doors:
- 4 pieces of aluminum sliding windows with 6 mm PMMA filling
- 3 pieces sliding doors with 6 mm PMMA infill
- 3 interior doors with XPS + HPL padding
Additional equipment:
1. Fisher Panda 10kW diesel power generator
2. Electric lowered swimming deck
3. Extendable foredeck for docking
4. Bow thruster
5. Navigation with a sonar
6. Meter solar steam
7. Meter shore steam charger
8. Two ton horn
9. 230 V socket on sun deck
10. Domestic batteries 3x200 Ah
11. 10x200 Ah propulsion batteries
12. 200Ah bow thruster battery
13. 100Ah music battery
14. Sine plus inverter 12/230 V 2000 / 4000W
15. 9kW webasto diesel heater with control
16. Music amplifier with 8 speakers
17. Illuminated bar
18. Surveillance of 8 IP cameras with internet access
19. Meters for fuel levels, clean water, waste water

Propulsion:
Electric with generator:
- battery bank 60V 400Ah
- 16 kW electric motor
- Fischer Panda 10 kW generator
